Let get your job done as professional

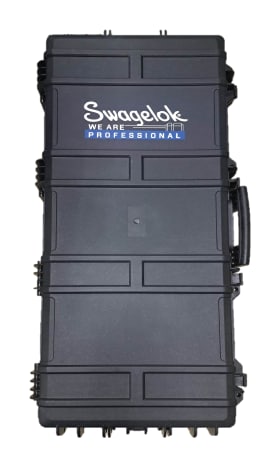

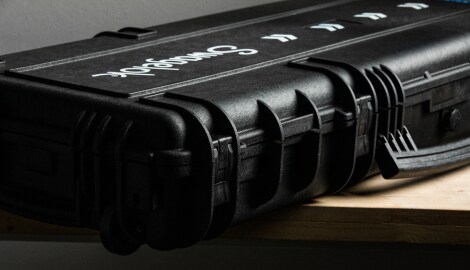

Make tube fitting installation more easy and safe with Swagelok Professional Tools. It contains all the hand tools needed for the leak-tight, gauge-able for safety installation of Swagelok tube fittings in our three most common sizes: 1/4 inch, 3/8 inch, and 1/2 inch outside diameter. All of the tools are securely contained in a purpose-built, lockable, water resistant, rugged case with wheels to make transporting the toolbox easy.

The Swagelok Professional Tools, part number SWA-PROTOOL-01-INCH, contains the following hand tools:

   • Hand Tube Bender (in all three sizes 1/4, 3/8 and ½ inch.)

   • Tube Cutter

   • Tube Deburring Tool

   • Tee Wrench (in all three sizes 1/4, 3/8 and ½ inch.)

   • Gap Inspection Gauge (in all three sizes 1/4, 3/8 and ½ inch.)

   • Vernier Caliper

   • PTFE Tape Thread Sealant, 1/4 x 576 inch.

   • PTFE Tape Thread Sealant, 1/2 x 288 inch.

   • Permanent Marker

   • Hand Tube Bender Manual

   • Tube Fitter's Manual

Download swagelok tools set brochures







The Swagelok Professional Tools gives you all the tools you'll need on the job site to make the installation process easier. The strong, secure case is water resistant and has free running wheel for easy transportation.

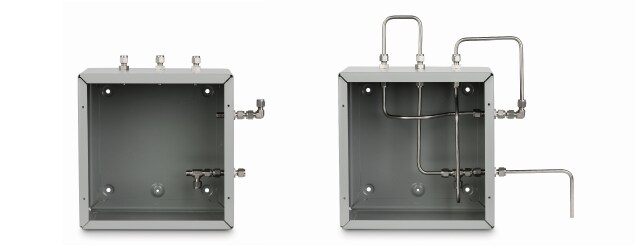

Make a quality connections for "Small Bore Tube Fitting Installation" through three basic steps

Step 1

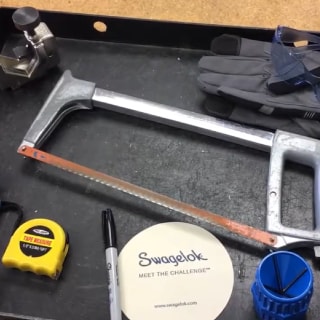

Cut. Deburr

Proper tube handling and preparation techniques—which all take place before the fitting is tightened—are essential for safe, leak-tight and long-lasting connections that plant operators can trust.



1. The Swagelok tube cutter cuts stainless steel,

soft copper, and aluminum tubing from 3/16 to

1 in. and 4 to 25 mm outside diameter.

Order Number: MS-TC-308



2. After using the tube cutter,

Swagelok deburring tools deburr

stainless steel, steel, and hard alloy

tube ends. Helps ensure burrs from

tube cutting are removed, reducing

the chances of leakage or damage

to components.

Order Number: MS-TDT-24

Step 2

Tube Bending

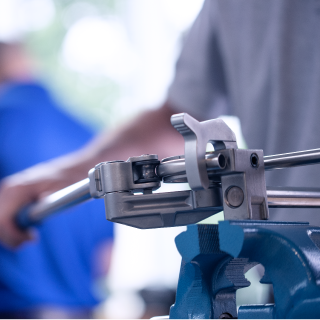

Swagelok^® tube benders provide high-quality bends on fractional and metric tubing made from materials that can be used with Swagelok tube fittings. Easy-to-use benders reduce installation time and the potential for wrinkling or other damage to the tubing during bending.



1. Swagelok Hand tube bender has a Clevis

handle design provides enhanced leverage

for bends greater than 90 degrees

2. Roll dies reduce bending force

and tube ovality.

Order Number:

MS-HTB-4T

MS-HTB-6T

MS-HTB-8

Step 3

Tube Fitting Installation & Inspection

Swagelok tube fittings are gauge-able, installer can be use depth marking tools to ensure tubing at bottomed on the shoulder inside the Swagelok tube fitting body and inspect a sufficient pull-up upon initial installation using gap inspection gauge.

Depth Marking Tool:

Swagelok depth marking tools help ensure that tubing is bottomed on the shoulder inside the Swagelok tube fitting body.

Order Number: MS-DMT-400, MS-DMT-600, MS-DMT-810

Tee Wrench:

On initial installation, the gauge assures the installer or inspector that the fitting has been sufficiently tightened.

Order No. MS-TW-4, MS-TW-6, MS-TW-8

Swagelok Gap Inspection Gauge:

Swagelok tube fittings are gauge-able, installer or inspector can be use depth marking tools to ensure tubing at bottomed on the shoulder inside the Swagelok tube fitting body and inspect a sufficient pull-up upon initial installation using gap inspection gauge.

Order No. MS-IG-468













Investing in the right tools for the job, means considering reliable, high quality tools that will last. Swagelok ultimate toolkit provides you with the means to maximize your efficiency.
