What is a Pressure Regulator? How to Select the Right Regulator for Your System | Swagelok Thailand

Regulators

A pressure regulator is a crucial device used to control and maintain pressure within a fluid system at a desired level. It ensures system stability, safety, and efficiency by adjusting pressure according to application needs. Regulators are categorized into two primary types based on their pressure control functions:

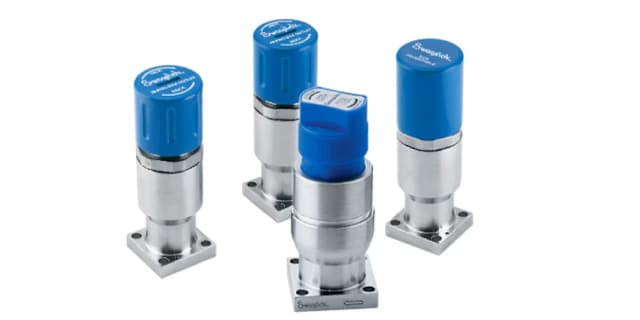

This type of regulator is designed to reduce and control the outlet pressure. It is commonly used in applications where high pressure needs to be stepped down to a lower, controlled level. For example, an inlet pressure of 3000 psi may need to be reduced to 300 psi for a specific application. Pressure reducing regulators are widely utilized in gas panels connected to gas cylinders or gas cylinder regulators attached directly to gas tanks

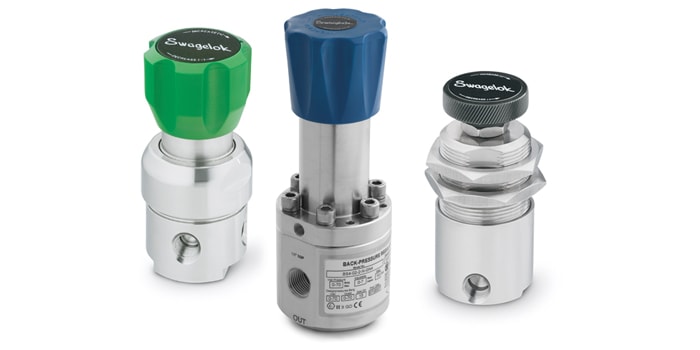

2. Back Pressure Regulator

A back pressure regulator controls the inlet pressure, acting similarly to a relief valve but offering greater precision. For instance, if a system requires an inlet pressure control of 300 psi, and the back pressure regulator is set at 350 psi, it will release excess pressure into a vent line or designated outlet whenever the pressure surpasses 350 psi. This helps maintain stable upstream pressure and prevents over-pressurization

Swagelok offers a comprehensive range of regulators for various applications, including analytical, process, high-purity, and gas cylinder changeover, designed for safety, reliability, and cost-efficiency in fluid system operations.
