Swagelok Mechanical Seal Components

Swagelok mechanical seal components help keep your rotating equipment running efficiently, maximizing uptime and improving safety with fewer leak points. Custom configurations and critical spares are available locally, saving money and reducing labor.

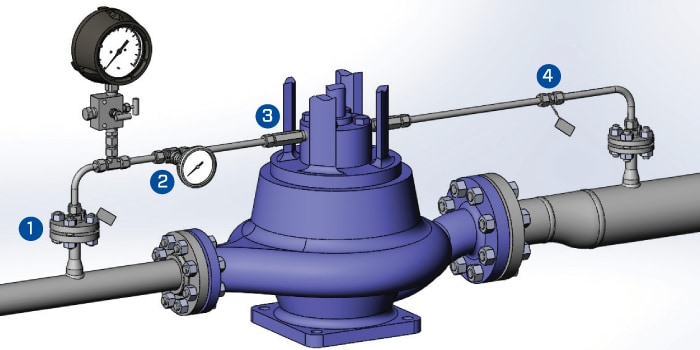

Swagelok, we improve the way you connect in your rotating equipment

    : Eliminate threaded pipe and potential leak points with a single fitting

    : Replace threaded or welded flange assemblies

    : Simplify installation

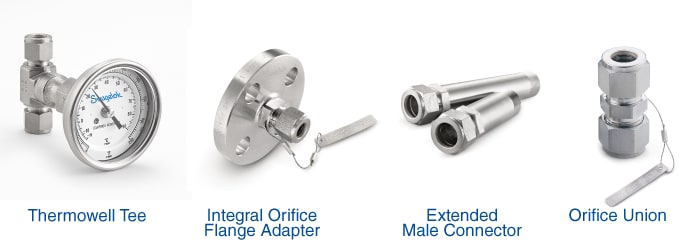

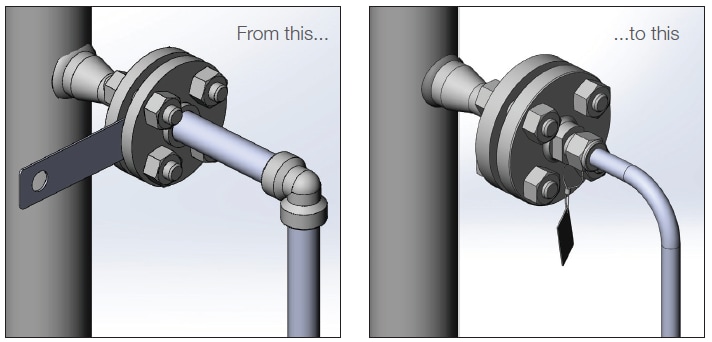

Icon-1Integral Orifice Flange Adapter

Easily add an orifice to a flush system with the orifice union. This fitting makes welding bulky flange assemblies unnecessary. Tagged for visual identification:



· Reduces number of potential leak points and eliminates need to fabricate welded or threaded adapter

· Tagged as reduced orifice for safety

· Easy-to-install transition from pipe to tubing

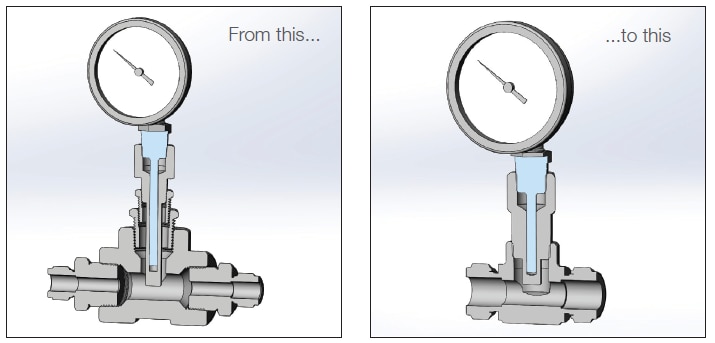

Number-Icon-2Thermowell Tee

Reduce threaded connections and monitor temperature with integrated thermowell pre-welded into tube fitting tee for ease of installation:



  • Welded thermowell eliminates multiple threaded pipe fittings, isolating process fluid for safer thermometer replacement
  • Lighter weight eliminates need for additional support
  • Accurate temperature measurement without blocking flow

· Welded thermowell eliminates multiple threaded pipe fittings, isolating process fluid for safer thermometer replacement

· Lighter weight eliminates need for additional support

· Accurate temperature measurement without blocking flow

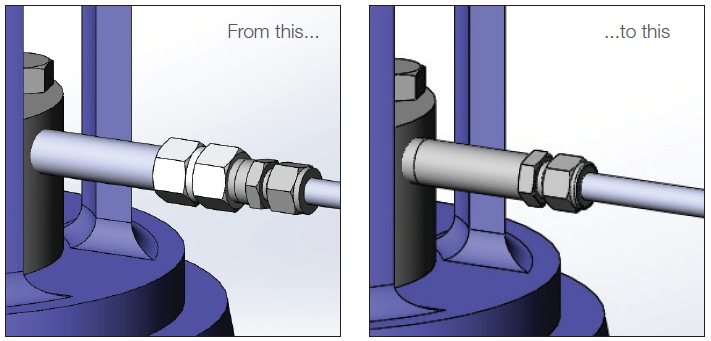

Number-Icon-3Extended Male Connector

Eliminate threaded pipe and potential leak points with a single fitting. Available in 4‑and 6- inch lengths, to allow you to clear the shroud and go straight from the gland to your tubing run in one piece:

  • Single fitting eliminates multiple connections and extends tubing connection beyond pump shroud
  • Larger body allows firm grip for ease of installation and access
  • Machined shank allows better access for close-clearance pump housing

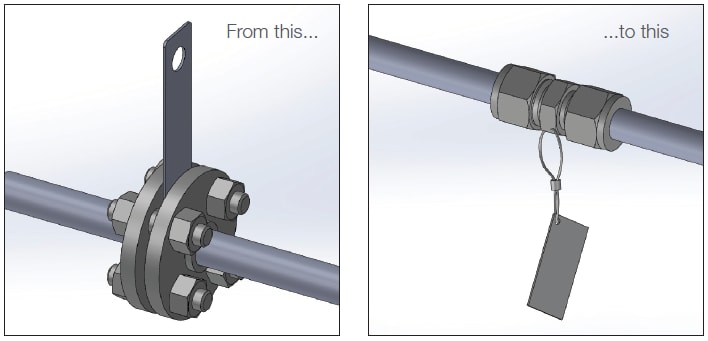

Number-Icon-4Orifice Union

Easily add an orifice to a flush system with the orifice union. This fitting makes welding bulky flange assemblies unnecessary. Tagged for visual identification:

  • Can be easily installed in tubing flush systems
  • Eliminates the need for welding flanges
  • Allows easy identification with attached tag, reducing installation errors

File to download

: Mechanical Seal Plan component brochure

: Mechanical Seal Plan component application guide

Ask for mechanical seal component quotation

Build Better Mechanical Seal Support Systems with Seal Plan Kits and Assemblies

Swagelok provides design and assembly of seal support systems through our network. We offer configurable, local, and reliable systems that are better by design to help you reduce costs, save time, and improve safety of your rotating equipment.



Seal Plan Kits

Seal plan kits are a collection of components that are used to connect the seal support plan to the pump. Due to the simplicity of the arrangement, the following API plans are offered only as a kit of components that are ready for field installation. These kits include all the necessary components to complete the plan:

Process side plans: 11, 12, 13, 14, 21, 22, 23, 31, and 41

Atmospheric side plans: 51, 62, 65A, and 65B

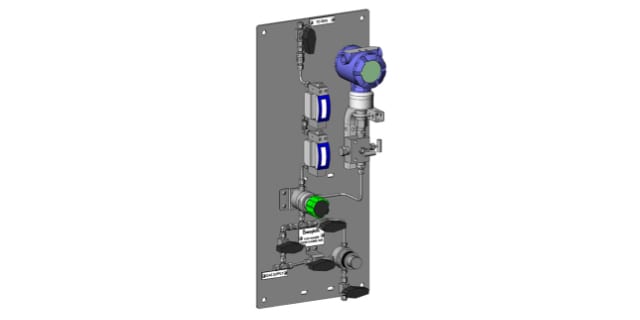

Seal Plan Assemblies

Seal plan assemblies are panels, seal pots, or skid systems that comprise the majority of each API seal support plan. The seal plan assembly ordering numbering structure allows for users to select a variety of configurations and additional system components to meet specific site or application requirements.

Process side plan: 32

Between seal plans: 52, 53A, 53B, 53C, 54, 55, 72, 74, 75, 76, and 72/76



Swagelok Seal Plan Kits and Assemblies

Explore Swagelok atmospheric side plans and process side plans available as seal plan kits.





















File to download

: Mechanical Seal Plan component brochure

: Mechanical Seal Plan component application guide



ask quote for mechanical seal pla

Find more about Mechanical Seal Plan

Swagelok Mechanical Seal Plan Solutions

See how Swagelok Pre-Fabricated Installation Work Package help you saved on-site labor time, money, and risk.
